Platonic Solids
Steven Dutch, Natural and Applied Sciences, University of Wisconsin - Green
Bay

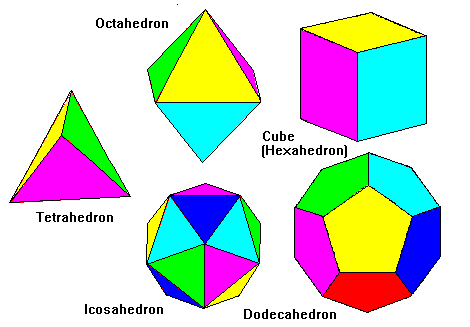

The Platonic solids are polyhedra with regular polygon faces. Faces
and vertices are identical. There are only five of then, shown below.
Basic Properties of Platonic Solids
| Solid |
Faces |
Edges
of Face |
Vertices |
Edges at
Vertex |
Edges |
Dual of... |
|
|
| Tetrahedron |
4 |
3 |
4 |
3 |
6 |
Tetrahedron |
| Cube |
6 |
4 |
8 |
3 |
12 |
Octahedron |
| Octahedron |
8 |
3 |
6 |
4 |
12 |
Cube |
| Dodecahedron |
12 |
5 |
20 |
3 |
30 |
Icosahedron |
| Icosahedron |
20 |
3 |
12 |
5 |
30 |
Dodecahedron |
Note that in each case, Euler's Rule is followed: F + V = E + 2. Also note
that faces in the cube and vertices in the octahedron play similar roles,
and similarly for the dodecahedron and icosahedron. These solids are duals
of each other.
Platonic Solids and Tilings
Platonic solids and uniform tilings are closely related as shown below.
Starting from the tetrahedron we have polyhedra with three triangles, squares
and pentagons at each vertex. The next step is the plane tiling with three
hexagons at each vertex. Also starting from the tetrahedron we have polyhedra
with three, for and five triangles at each vertex. The next step is the
plane tiling with six triangles at each vertex. The figures in the top
and bottom rows are duals of each other.
In addition to the convex Platonic solids, there are four other solids
with identical faces and vertices. In these solids the faces penetrate
through each other. These are the Kepler-Poinsot Solids.
